PRECIOUS METAL RECYCLING
AT THE HIGHEST LEVEL

SAXONIA’s raw material base is derived almost exclusively from recycled material streams. Recovering gold, silver, platinum, palladium, rhodium and iridium from precious metal-bearing waste, scrap and residues from a wide range of sources is one of SAXONIA’s core competencies – and the foundation of our customers’ trust. As a recycling specialist, we recover your precious metal values using state-of-the-art refining technologies – quickly, transparently and with maximum recovery rates.

As the oldest and today one of the leading names in the refining business, SAXONIA provides a comprehensive range of recycling services: from economic feasibility assessments, waste management and logistics to state-of-the-art sampling and analytical methods. The result: precious metals of the highest purity, produced economically and in an environmentally responsible manner.

EFFICIENT AND ENVIRONMENTALLY RESPONSIBLE

SAXONIA’s recycling processes – both pyrometallurgical and hydrometallurgical – are based on state-of-the-art technological standards in precious metal recovery and environmental technology. This enables us to guarantee our customers across all relevant industries and sectors highly efficient precious metal recovery from refining materials, sweeps and ashes, using environmentally sound processes through to marketable fine metal of the highest purity:

Scope 01

Recording of total fuel consumption
Recording of company fuel consumption
Fugitive greenhouse gas emissions

Scope 02

Recording of electricity consumption
Recording of heat – and steam consumption
Monitoring compressed air consumption

SAXONIA Recycling

	SCOPE 01 + 02	inkl. SCOPE 03
Unit	kg CO₂ eq / kg.
Ag	8,4	15
Pt	376	661
Pd	247	434
Rh	1061	1868

Raw materials

The extraction of precious metals is carried out from metallic materials (refinery residue) and non-metallic materials (scrap), which include also catalyst materials amongst. Thanks to the recovery technology used at SAXONIA , it is possible to a very wide range of raw materials to process. Both in terms of the precious metal content and the material compositions as well as as well as with regard to the condition or the form of the supplied raw materials.

Waste from a wide variety of sectors

Precious metals processing industry
Recyclers and refineries
Precious metal buyers
Jewellery making
Electrical Engineering / Electronics / Sensor Technology
Electrochemistry

Catalyst manufacturer
Dental industry
Film and photography equipment
Chemical Industry
Pharmaceutical industry
Coin – and minting works

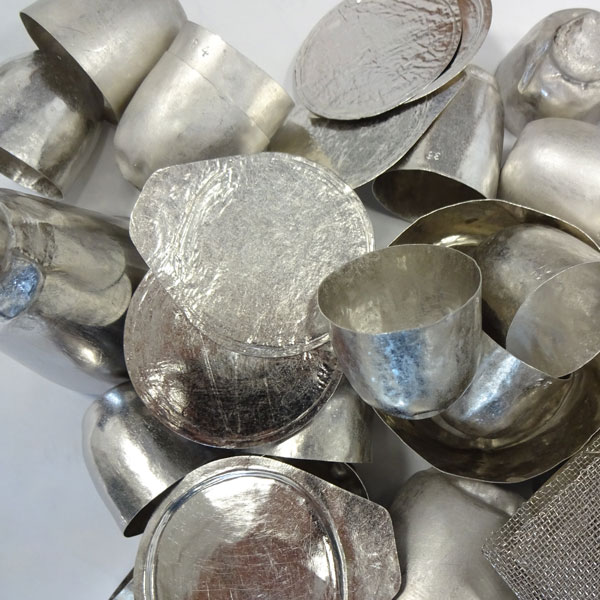

Melting materials (meltable materials)

Refinery by-products are high-quality metallic raw materials that often contain high contents of one or more precious metals are found. Such material is as a rule homogenised during the sampling by means of melting homogenised, sampled and analysed

Scrap gold and scrap silver (ingots / blocks / granules)
Anodes and anode residues
Jewellery materials, scrap jewellery and old jewellery
Electrolytic silver (industrial silver)
Silverware (silver goods / silverware / silver cutlery items)
Silver battery plates / -electrodes
Dental scrap (dental gold, Hg < 10 ppm)
Precious metal targets
Pt / PtRh / PtPdRh scrap from the glass industry

Precious metal-bearing concentrates from the waste processing
Manufacturing, production line, stamping, and casting scrap
Laboratory equipment / Laboratory crucibles
Coin – and medal scrap
PtPdRh catalyst networks
Contacts and contact materials
Metallic residues (fusible)
Solder and solder scraps (metallic)

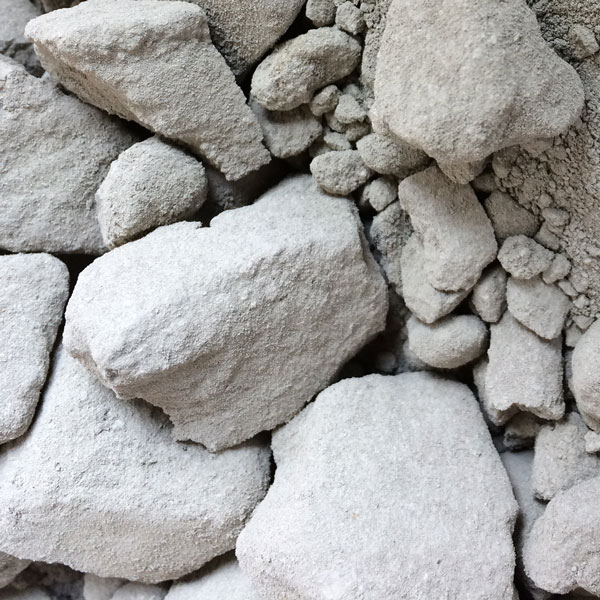

Scrapings / Ash / Residues (materials that are not fusible)

The field of non-meltable raw materials is extremely diverse and encompasses scrapings, ash and residues from a wide variety of industries, manufacturing processes and waste recovery operations. Consequently, scrap material is usually very heterogeneous in composition and often requires a relatively complex homogenisation process. This is frequently carried out in multi-stage homogenisation, separation or fractionation operations
(incineration, annealing, drying, grinding, mixing, melting).

Jeweller’s scribbles
Ash from the waste pre-treatment
Dental scrapings (mercury-free, Hg < 10 ppm)
Residues / Sludge / Ash from film production / film recycling
Filter residue / Filter cake / Filter materials
Furnace breakouts / Crucible materials / Fireclay
Electroplating waste (ion-exchange resins / filter materials /
precious metal slurries)
Ceramic production waste and scrap from the electronics
manufacturing sector (components / sensors / printed hybrid circuits)

Powder and paste residues, tins and cartridges
(conductive pastes, solder pastes, conductive adhesives, conductive varnishes)

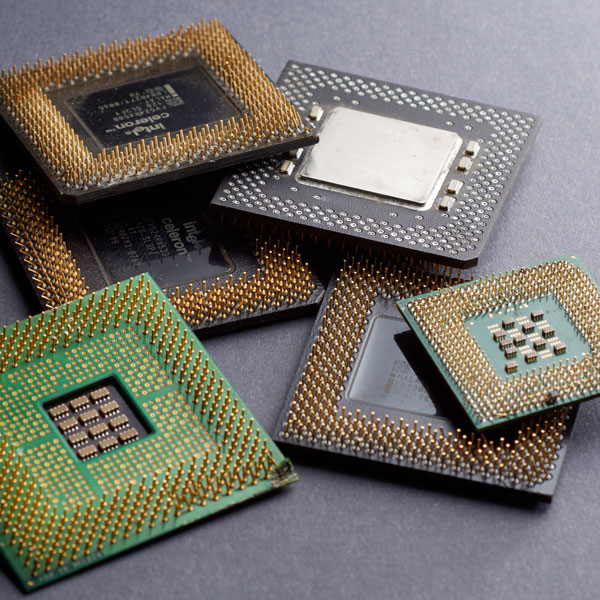

Electronic scrap (sorted – high-grade only)
Polishing residues / sludge from precious metal processing
Slag, scale and dust from precious metal processing
Abrasives / Blasting grit
Concentrates and distillates
Waste from lotteries and unclaimed prizes
Cementates

Catalyst waste

The recycling of used, precious-metal-containing automotive exhaust – as well as industrial – and environmental catalysts is a distinctive
area of expertise of SAXONIA and a key focus of our precious metal recovery. Our focus includes industrial catalysts on
various support materials (activated carbon, ceramic catalyst supports based on inorganic, non-metallic bases) and in
various forms. Furthermore we recover the precious metals from car exhaust catalytic converters: monolith and diesel particulate filter material,
as well as washcoat and production waste from the catalysator manufacturing process are typical raw materials for SAXONIA.

Industrial catalysts

containing Pt, Pd, Rh on an activated carbon base
containing Au, Ag, Pt, Pd, Rh on a ceramic catalyst support material (oxide-based, such as: aluminium silicates, calcium carbonate, silicon dioxide, zeolites) or natural substrates (silica, kaolin, bentonite, pumice) in the form of powder, moulded pieces, extruded products, spheres, granules or honeycomb structures

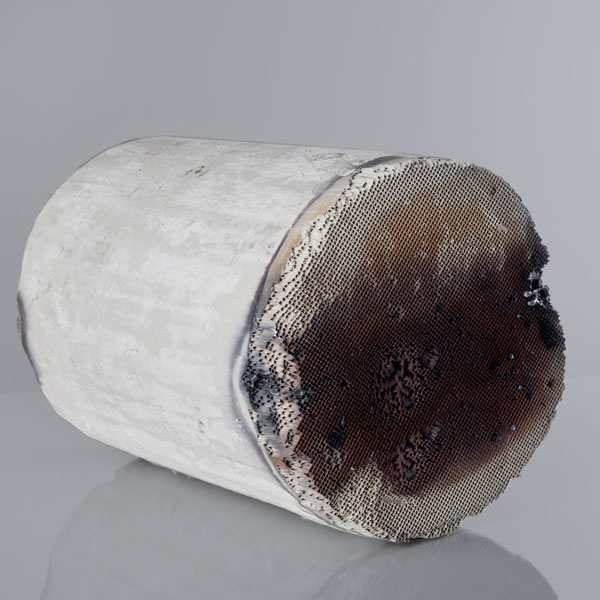

Car and exhaust catalytic converters

Ceramic catalysts (monoliths, crushed monoliths,
ground monoliths)
Diesel particulate filter (SiC-based)
Washcoat

Care and trust
for your values

The recycling of precious metals creates high value. Trust is an indispensable prerequisite for a successful partnership. SAXONIA guarantees you therefore the highest level of transparency in the divorce proceedings, absolute accuracy in the analysis and particular care in the environmentally friendly recovery of your precious metals. This is supplemented by a comprehensive traceable, traceable documentation of the entire recycling process.

Sampling

A representative sample to obtain, is the start of everything, whether on a fiduciary basis or in conjunction with you.

Preparation – Homogenisation
Raw materials: Melting into blocks, ingots or granules / Sawing or. Drilling of test ingots
Scrapings: drying, annealing, grinding, sieving, mixing and melting the metallic components of composite samples
Microsurgical preparation – collection of laboratory samples

Analyst

People often talk about the odds of one in one million. Yet it is our aim to find every part of one million.

Analysis / Testing
Physical-optical
methods: XRF (X-ray fluorescence
analysis), AAS (atomic absorption spectrometry), ICP (inductively coupled plasma emission spectroscopy)
Wet chemical methods:
potentiometry, gravimetry

Extraction

We extract your metals to the highest purity using state-of-the-art, certified and environmentally friendly processes.

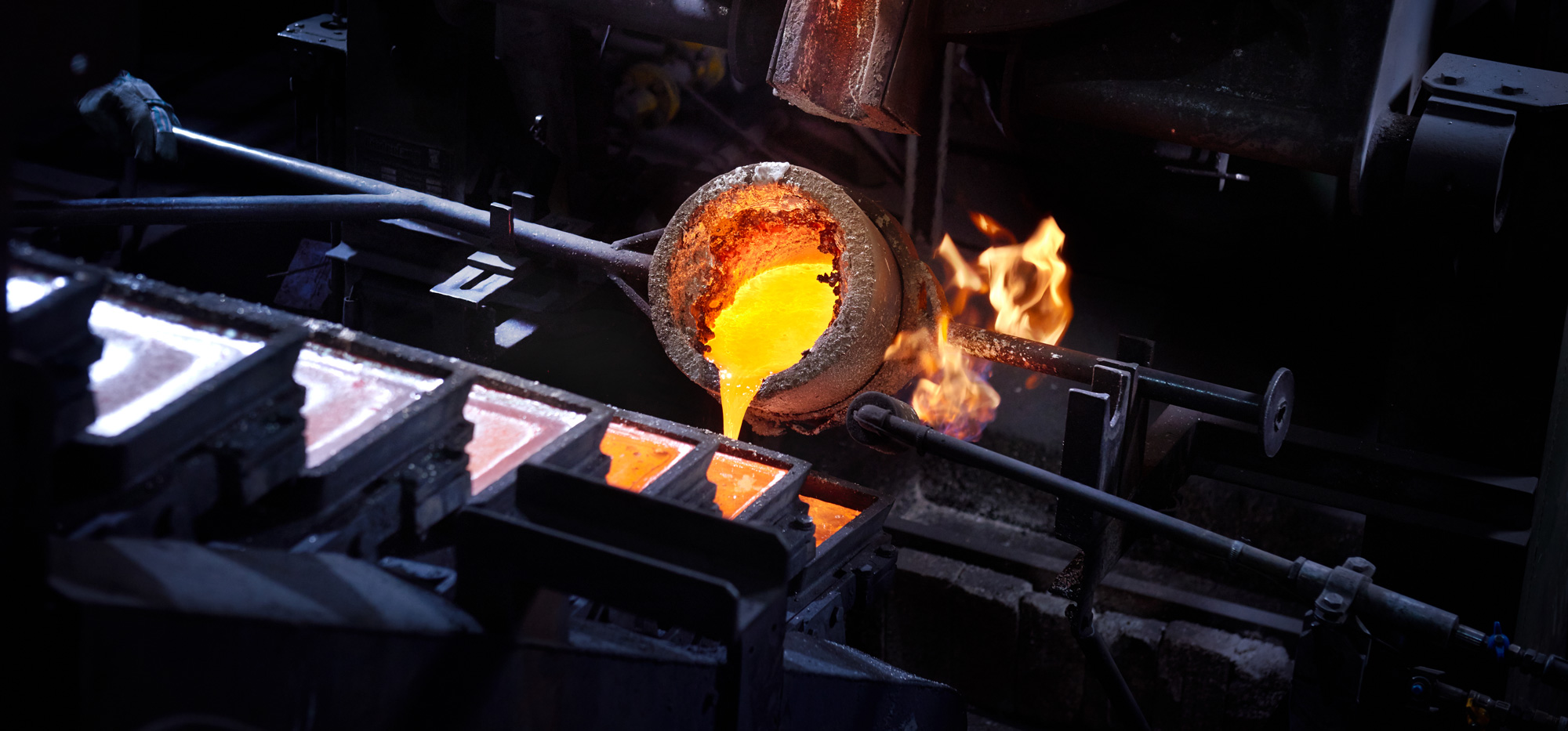

Pyrometallurgical: Thermal concentration
and refining

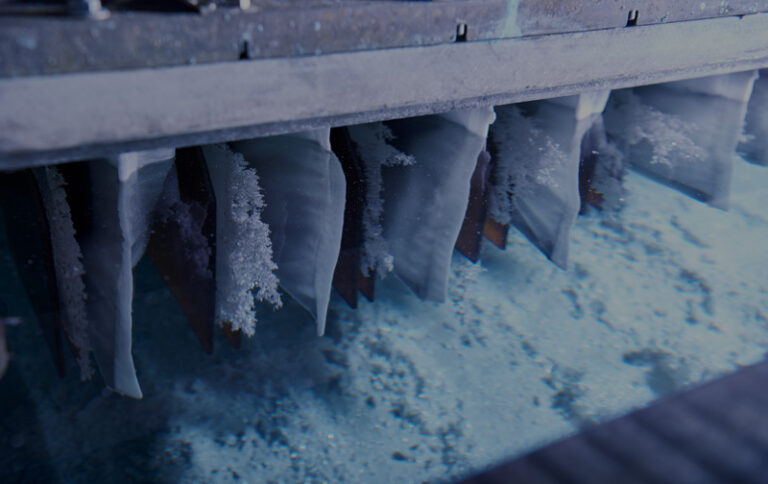

Wet chemical: silver – and gold electrolysis / PGM separation
Fine metal grade:
Au 99.99% (4N)
Ag 99.99% (4N / 5N)
Pt/Pd 99.95%
Rh 99.90%

Billing

Our invoices are always transparent, clear and free of hidden costs.

Purchase of materials:
Payment for the precious metals supplied
Precious metals account:
Credit entry for the deposited precious metals to a precious metals account and calculation of costs

Deliveries are made in accordance with the SAXONIA quotations, based on the General Terms and Conditions for the processing and purchase of materials containing precious metals, in conjunction with the SAXONIA Acceptance Catalogue for waste containing precious metals intended for recovery, in accordance with the Ordinance on the European Waste Catalogue (AVV).

Precious metals of the highest purity

For us it is a matter of course, to extract your precious metals to the highest purity, in accordance with the ASTM standard and the ‘Good Delivery’ standard. In addition, we produce silver a16> silver of a purity of 99.999 %.

GOLD 99,99 % (4N)
SILVER 99,999 % (5N)
PLATINUM 99,99%
PALLADIUM 99,99 %
RHODIUM 99,95 %

Precious Metals Management / Services

Precious metal fixation
Management and administration of metal accounts
Precious metal procurement
Price information

Collection / transport in accordance with dangerous goods regulations
by SAXONIA
Performance audit
Precious metal transfers

Sales folder Precious metal recycling

Quality

At SAXONIA, quality is of the utmost importance to us – both in terms of the purity of precious metals and in our manufacturing and processing. Using a wide range of testing methods and state-of-the-art laboratory equipment, we ensure that all the products we manufacture meet our high quality standards at all times.

EXTENSIVE FEATURES:

Chemical laboratory
Materials Laboratory
Metallographic Laboratory
Technical Centre / Testing Laboratory

COMPREHENSIVE TEST METHODS:

Layer thickness
Microstructures
Surface roughness
Geometry and spring forces
Tensile – and compression tests
Shear forces
SPC control

DO YOU HAVE ANY QUESTIONS?

We would be happy to advise you, for example with the selection of materials and their properties – and we’ll be happy to assist you upon request already with pleasure in the development process for your future application. Please get in touch with us.

Johannes Heisig
Tel. +49 3731 2089-354
Fax +49 3731 2089-433
